IMT Ballistic Separators
Advanced ballistic separation technology for efficient waste processing and recycling operations. Separates materials into light, heavy, and screen fractions with exceptional accuracy.

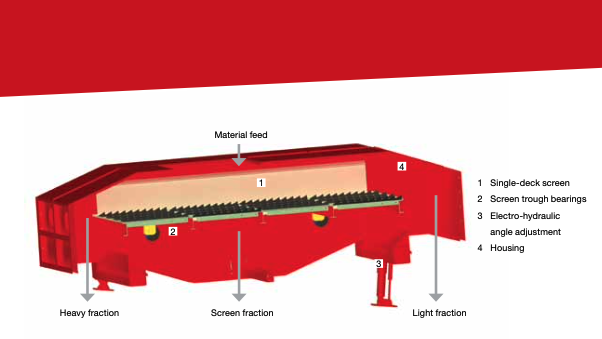

Separation Technology
Light Fraction
Lightweight and flat materials like paper, plastics, films and textiles are transported forward by rotary movement.
Heavy Fraction
Heavy and round items like bottles, cans, wood and metals are discharged backwards by screen angle.
Screen Fraction
Perforated screen deck generates screened fraction simultaneously during separation process.
Separation Guarantee
Light fractions contain no more than 8% heavy particles by mass
Heavy fractions contain no more than 8% light particles by mass
(except containers such as foamed plastics and cans)
IMT Separator 40
Standard ModelsKey Specifications
- • Maximum throughput: 40 m³/h
- • Electric drive: 13 kW
- • Screen trough: 5000x1300 mm
- • Machine dimensions: 7600x2700x3000 mm
- • Weight: 5000 kg
Key Features
- • Single-deck system
- • Hydraulic angle adjustment 5°-12°
- • External drive components
- • Low maintenance requirement
IMT Separator 80
Standard ModelsKey Specifications
- • Maximum throughput: 80 m³/h
- • Electric drive: 13 kW
- • Screen trough: 5000x2500 mm
- • Machine dimensions: 7600x4000x3000 mm
- • Weight: 6500 kg
Key Features
- • High capacity processing
- • Vibration monitoring system
- • Programmable logic controller
- • Flexible sealing system
IMT Separator 120
Standard ModelsKey Specifications
- • Maximum throughput: 120 m³/h
- • Electric drive: 18 kW
- • Screen trough: 5000x4000 mm
- • Machine dimensions: 7600x5500x3000 mm
- • Weight: 9000 kg
Key Features
- • Maximum throughput capacity
- • Advanced control system
- • Automatic lubrication option
- • Superior separation accuracy
IMT Separator 40 Light
Light Material ModelsKey Specifications
- • Maximum throughput: 40 m³/h
- • Volume weight: max. 250 kg/m³
- • Electric drive: 13 kW
- • Screen trough: 5000x1300 mm
- • Weight: 4000 kg
Key Features
- • Optimized for light materials
- • Reduced weight design
- • Energy efficient operation
- • Compact footprint
IMT Separator 80 Light
Light Material ModelsKey Specifications
- • Maximum throughput: 80 m³/h
- • Volume weight: max. 250 kg/m³
- • Electric drive: 13 kW
- • Screen trough: 5000x2500 mm
- • Weight: 5500 kg
Key Features
- • High efficiency light separation
- • Positive air support option
- • Automatic height adjustment
- • Color display control panel
IMT Separator 120 Light
Light Material ModelsKey Specifications
- • Maximum throughput: 120 m³/h
- • Volume weight: max. 250 kg/m³
- • Electric drive: 16 kW
- • Screen trough: 5000x4000 mm
- • Weight: 7800 kg
Key Features
- • Maximum light material capacity
- • Advanced separation technology
- • Fully automatic operation
- • Superior separation guarantee
Applications
Waste Classification
- • Household waste
- • Industrial waste
- • Light packaging
- • C&D waste
Recycling
- • PET bottles
- • Films & RDF
- • Paper & cardboard
- • Metals
Advantages
- • Single-deck system
- • External drive
- • Low maintenance
- • Ready for connection
Options
- • Air support system
- • Auto height adjustment
- • Auto lubrication
- • Monitoring systems
Need Help Choosing the Right Ballistic Separator?
Our equipment specialists can help you select the perfect separation solution for your specific waste processing requirements.
