Mobile Trommel Screens
Discover our range of mobile trommel screens designed for efficient material separation and screening operations.
Pronar MPB 14.44
Mobile UnitsKey Specifications
- • Trommel dimensions (L/D) [mm] 4400/1400
- • Dimensions (L/W/H) [mm] 10690/2250/3860
- • Weight [kg] ~11000
- • Max trommel rotational speed [rpm] 23
- • Effective sieve surface [m²] 16
- • Loading height [mm] 2580
- • In-Feed hopper capacity [m³] 3.3
Key Features
- • Low fuel consumption
- • Easy service access
- • Road haulage without additional permits
- • Quick preparation and autostart function
- • Can be ordered with electric motor
- • Compact size
- • CAT 1.7l, 35 kW engine

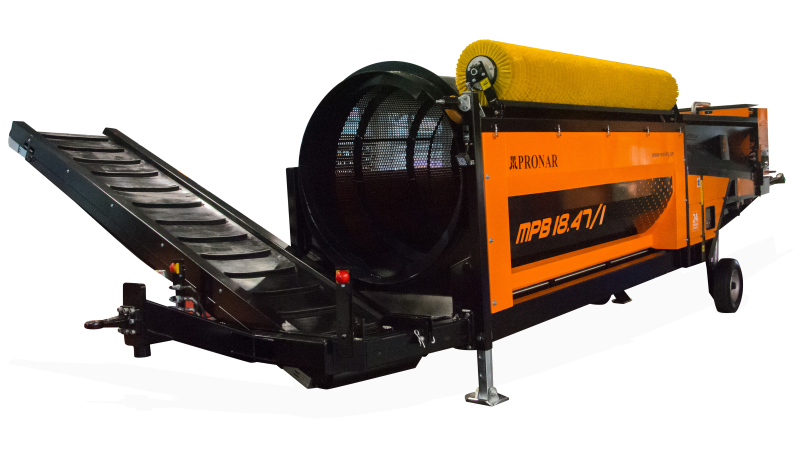

Pronar MPB 18.47/1
Mobile UnitsKey Specifications
- • Trommel dimensions (L/D) [mm] 4700/1800
- • Dimensions (L/W/H) [mm] 13860/2340/2630
- • Weight [kg] ~12800
- • Max trommel rotational speed [rpm] 23
- • Effective sieve surface [m²] 22.1
- • Loading height [mm] 2100/3000
- • In-Feed hopper capacity [m³] 5
Key Features
- • Favorable price calculated
- • Low running costs
- • Compatible with selected manufacturers drums
- • Low loading height for small loaders
- • Deutz 2.9l, 55.4 kW or CAT 2.8l, 55 kW engine
Pronar MPB 18.47
Mobile UnitsKey Specifications
- • Trommel dimensions (L/D) [mm] 4700/1800
- • Dimensions (L/W/H) [mm] 10990/2550/3850
- • Weight [kg] ~12800
- • Max trommel rotational speed [rpm] 23
- • Effective sieve surface [m²] 22.1
- • Loading height [mm] 2700
- • In-Feed hopper capacity [m³] 5
Key Features
- • Road haulage without additional permits
- • Tracked version available
- • Easy service access
- • Performance for small and medium companies
- • Short set-up time and autostart function
- • Compatible with selected manufacturers drums
- • CAT 2.8l, 55 kW engine

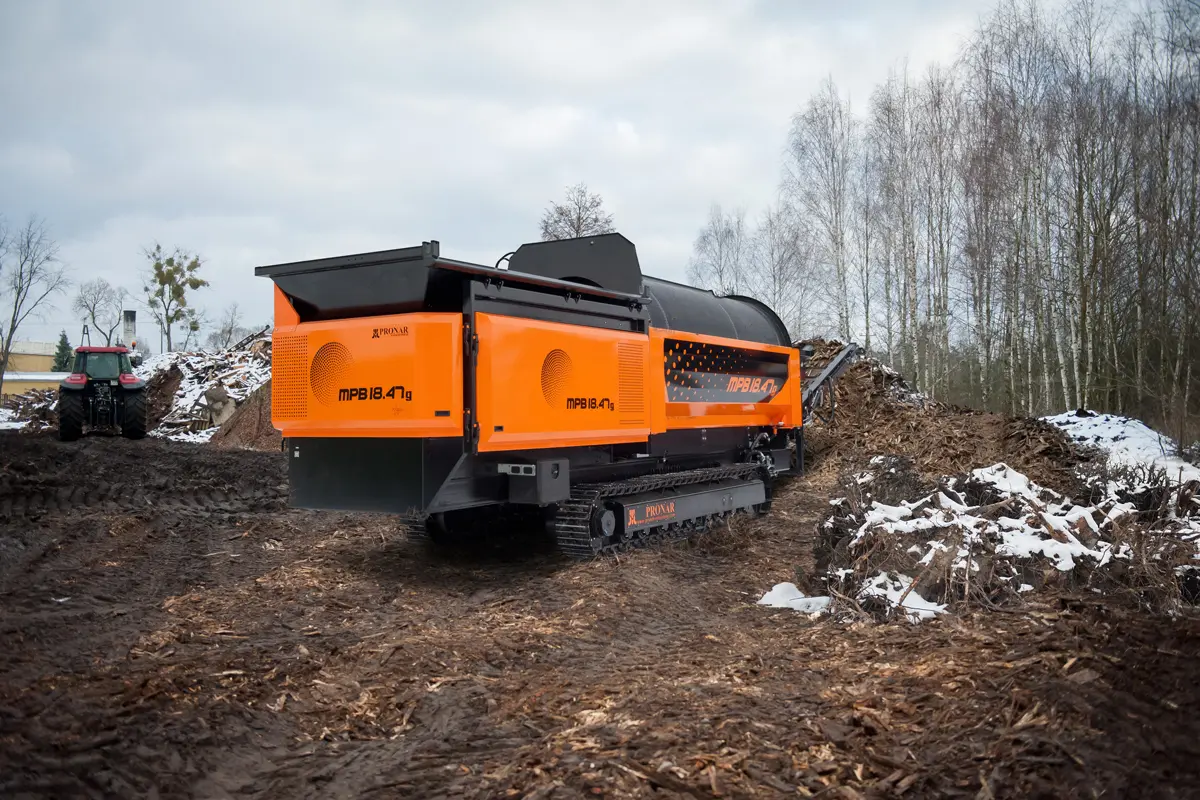

Pronar MPB 18.47g
Tracked UnitsKey Specifications
- • Trommel dimensions (L/D) [mm] 4700/1800
- • Dimensions (L/W/H) [mm] 9530/2920/3450
- • Weight [kg] ~14000
- • Max trommel rotational speed [rpm] 23
- • Effective sieve surface [m²] 22.1
- • Loading height [mm] 2660
- • In-Feed hopper capacity [m³] 5
Key Features
- • Road haulage without additional permits
- • Tracked chassis for easy movement
- • Easy service access
- • Performance for small and medium companies
- • Short set-up time and autostart function
- • Compatible with selected manufacturers drums
- • CAT 2.8l, 55 kW or Deutz 2.9l, 55.4 kW engine
Pronar MPB 20.55
Wheeled UnitsKey Specifications
- • Trommel dimensions (L/D) [mm] 5500/2000
- • Dimensions (L/W/H) [mm] 11880/2550/3900
- • Weight [kg] ~16000
- • Max trommel rotational speed [rpm] 30
- • Effective sieve surface [m²] 29.8
- • Loading height [mm] 2710
- • In-Feed hopper capacity [m³] 6
Key Features
- • High performance
- • Ease of servicing
- • Possibility to mount a star deck
- • Quick preparation for work and autostart function
- • Compatibility with drums of selected manufacturers
- • CAT 3.6l, 90 kW (122 HP) Stage V/Tier 4 Final
Pronar MPB 20.55g
Tracked UnitsKey Specifications
- • Trommel dimensions (L/D) [mm] 5500/2000
- • Dimensions (L/W/H) [mm] 10610/2920/3510
- • Weight [kg] ~20000
- • Max trommel rotational speed [rpm] 25
- • Effective sieve surface [m²] 29.8
- • Loading height [mm] 2700
- • In-Feed hopper capacity [m³] 6
Key Features
- • High performance
- • Ease of servicing
- • Possibility to mount a star deck
- • Quick preparation for work and autostart function
- • Compatibility with drums of selected manufacturers
- • CAT 3.6l, 90 kW (122 HP) Stage V/Tier 4 Final
Pronar MPB 20.55gh
Tracked UnitsKey Specifications
- • Trommel dimensions (L/D) [mm] 5500/2000
- • Dimensions (L/W/H) [mm] 10740/3100/3750
- • Weight [kg] ~20840
- • Max trommel rotational speed [rpm] 25
- • Effective sieve surface [m²] 29.8
- • Loading height [mm] 2680
- • In-Feed hopper capacity [m³] 6
Key Features
- • High performance
- • Ease of servicing
- • Possibility to mount a star deck
- • Drum leveling system
- • Quick preparation for work and autostart function
- • Compatibility with drums of selected manufacturers
- • CAT 3.6l, 90 kW (122 HP) Stage V/Tier 4 Final
Pronar MPB 20.72
Wheeled UnitsKey Specifications
- • Trommel dimensions (L/D) [mm] 7200/2000
- • Dimensions (L/W/H) [mm] 12310/2550/3920
- • Weight [kg] ~25000
- • Max trommel rotational speed [rpm] 23
- • Effective sieve surface [m²] 40.6
- • Loading height [mm] 2730
- • In-Feed hopper capacity [m³] 6
Key Features
- • Designed with large projects in mind
- • Large screening area
- • Ease of transport
- • Good cleaning of even difficult materials
- • Ease of servicing
- • Short set-up time and autostart function
- • CAT 3.6l, 90 kW (122 HP) Stage V/Tier 4 Final
Need Help Choosing the Right Trommel Screen?
Our equipment specialists can help you select the perfect screening solution for your specific application.
